Wayfinding with AI Pin

Wayfinding with AI Pin

Warning

This post is more than a year old. Information may be outdated.

Case Study of Humane Ai Pin

Process - Wayfinding with Ai Pin

Pocket-sized projector

6A21D1

Used a Pico projector.
Took the projector outside to film our concepts and showcase how they could work.

Architecture

A8FEC4

Hypothesized that Ai Pin could utilize a MEMS blue laser scanner
- small size, energy efficiency, and always-in-focus capabilities.
Projected images on our hands and developed guidelines for positioning and scaling UI elements.

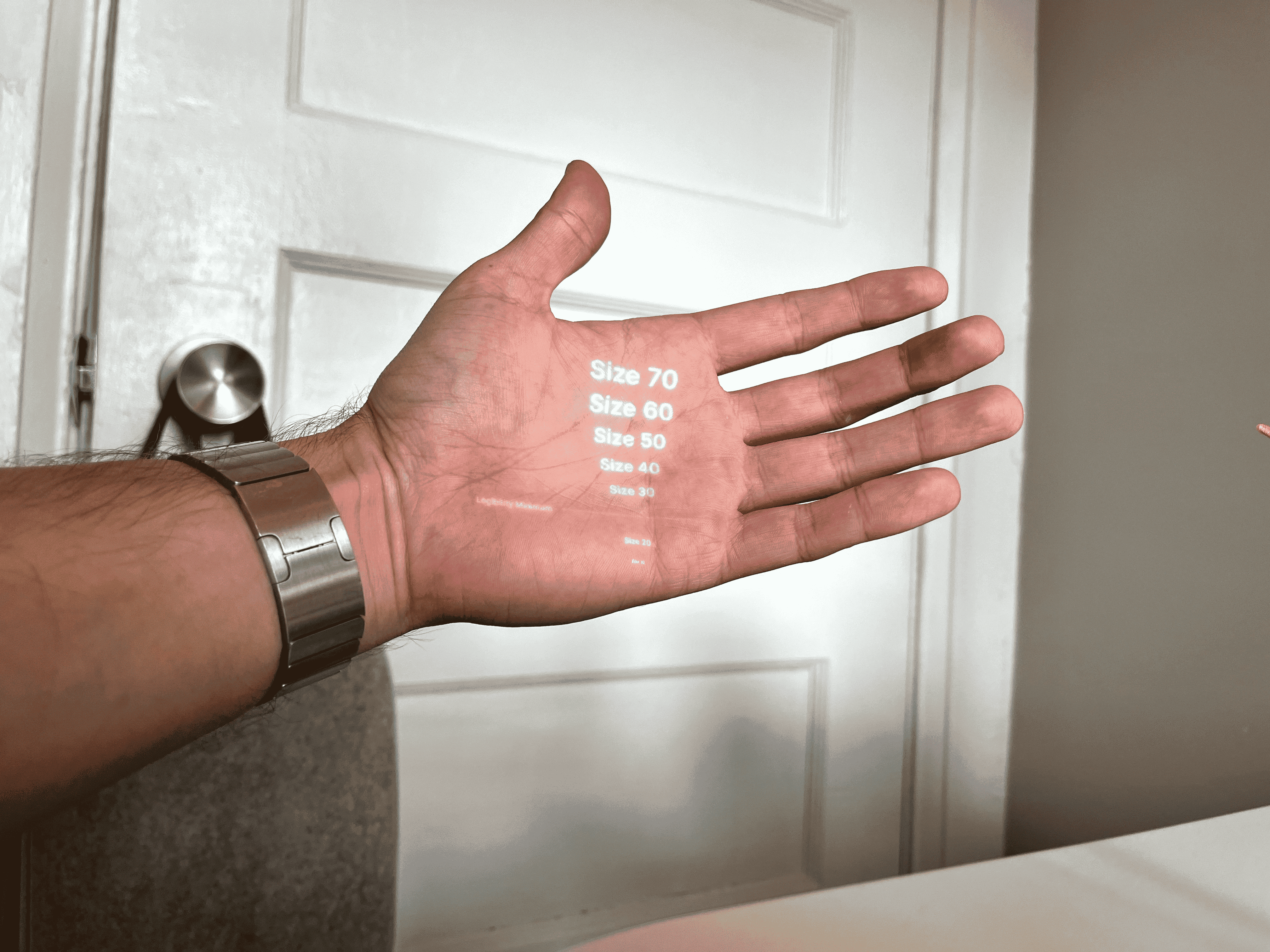

Font and line weights

F7D97E

Backlinks2

Comments

Created tests to find which fonts, line weights, and shapes were ideal for legibility under bright and dark environments to understand laser projectors better.

Iterative prototyping

FB5B85

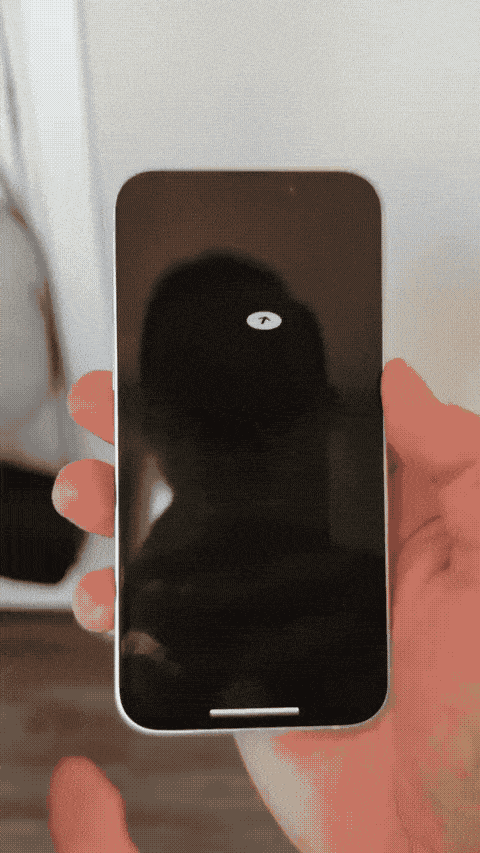

The demo shows a compass arrow that adjusts its perspective based on your hand position.
Used tools like Figma, Origami, and Keynote

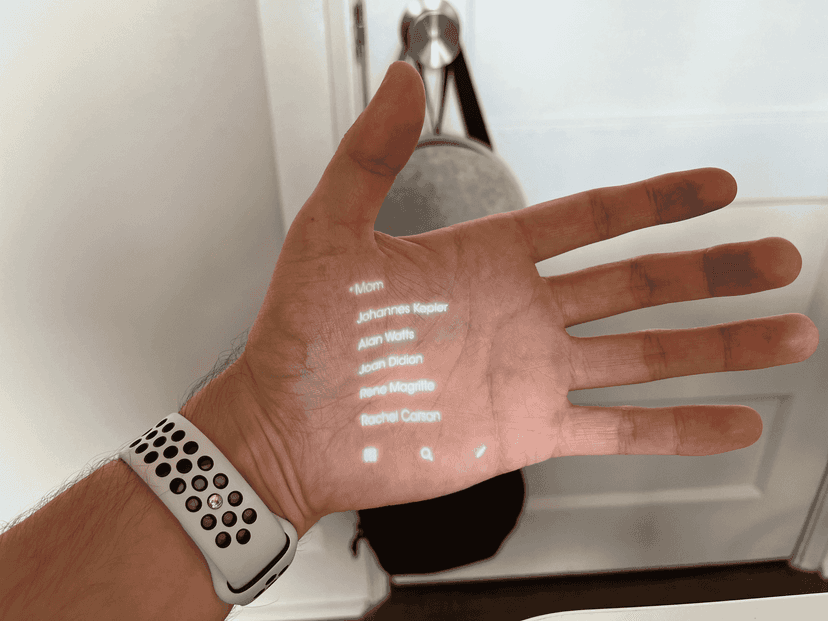

Inspiration

4CD57A

Light Phone II is designed as a communication tool that reduces distractions.
Inspired by its interface and tried projecting it as an early experiment.

One-handed operation

DEE740

Ai Pin should still work with one hand.
This example shows how you could return to a dashboard or "home" state by closing your palm.
This correlates with you "closing" an activity.

Primary gestures

8CE4FB

We would like to know if you could display interface elements on your fingertips that could be easily tapped.
This solution feels ergonomically friendly.
Not sure if the hardware will be able to project onto a target this small

Common interactions

B47ACF

We tested our interaction mechanisms on common visual elements such as lists.
This demo explores scrolling lists using a two-handed gesture.
The interfaces we pursued for this concept reduced the need to scroll by displaying minimal information.

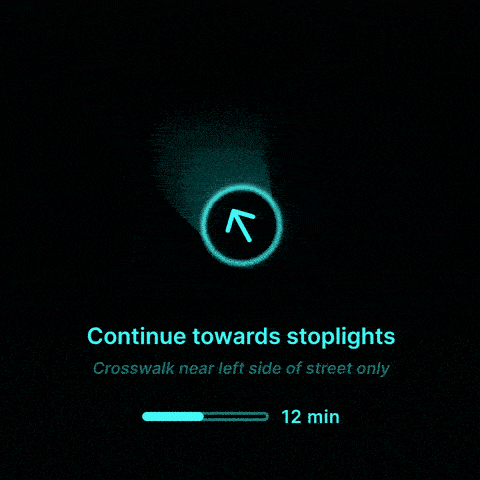

Animations and haptics

308AC8

Multi-modal feedback --visual cues, sound, and haptics-- would be critical for Wayfinding.
Built animations to work alongside the potential hardware to demonstrate these scenarios.

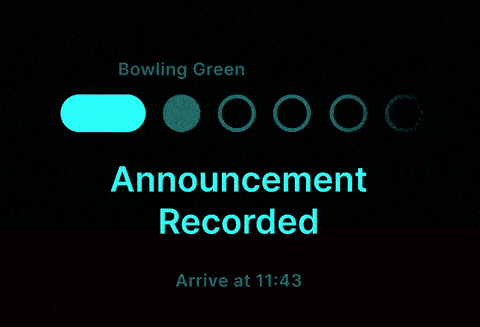

Ambient awareness

402F83

A future iteration of the hardware may be able to listen to announcements.
Ai Pin could transcribe and alert you about relevant trip updates.

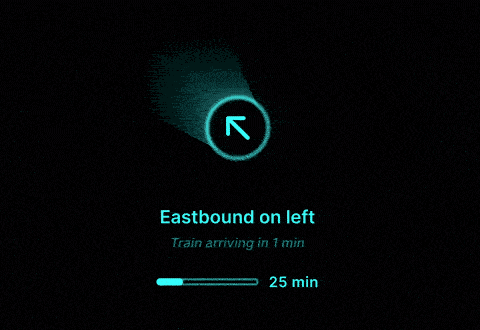

Dynamic, contextually aware interface

242382

Seamlessly transition and adapt based on understanding your surroundings.
Less manual control, more intelligent interface, without interaction
